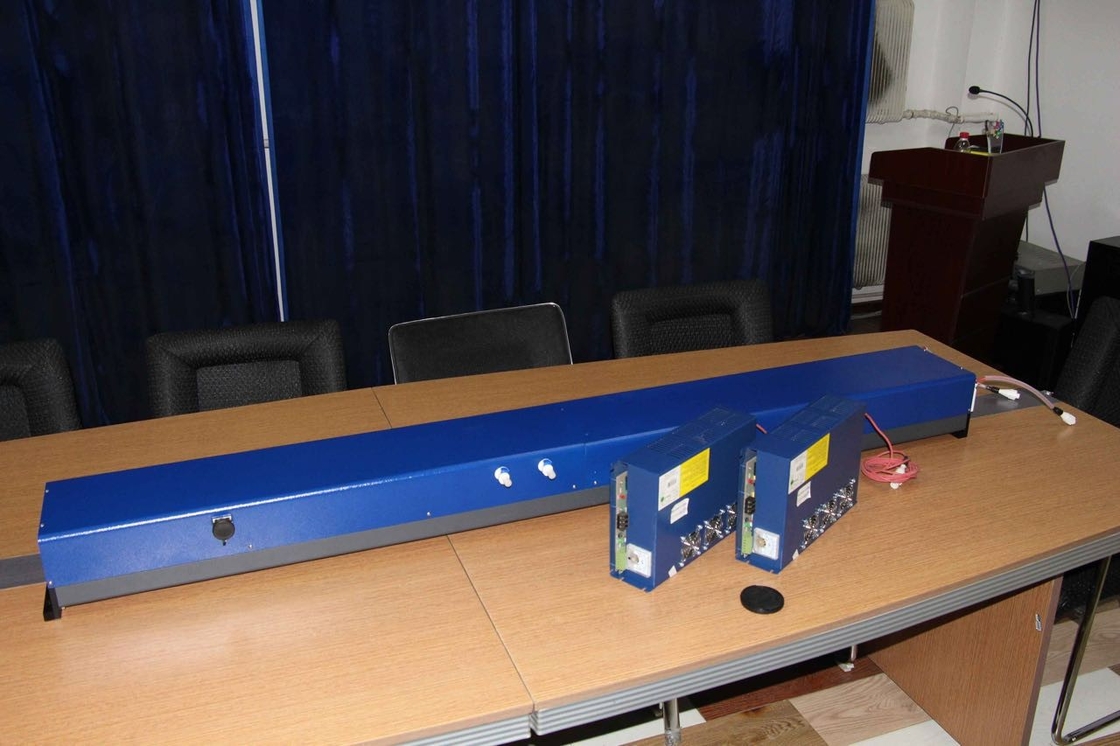

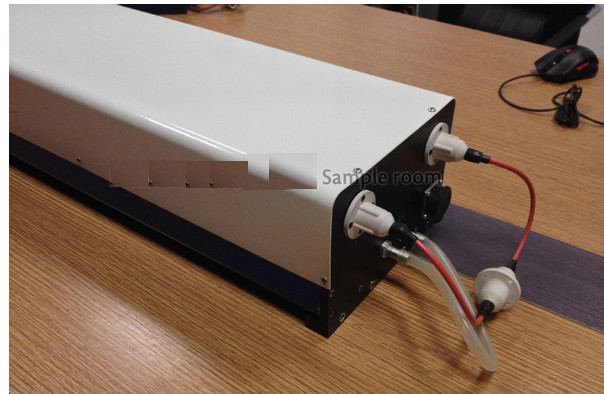

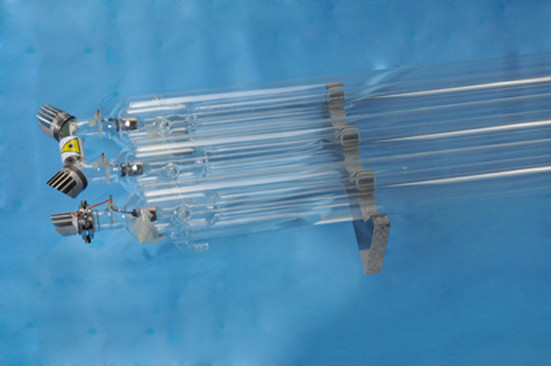

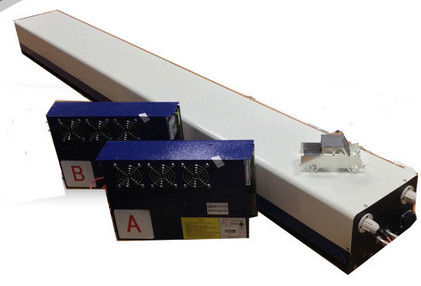

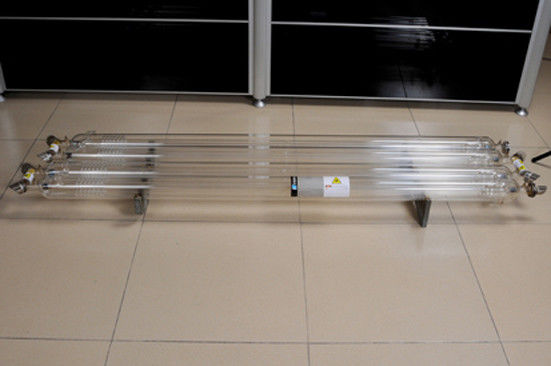

Tabung Laser Stabil Mirip Dengan Model GSI 280W CO2 Dengan Titik Sinar Dan Stabilitas Yang Sangat Baik
tabung laser 280W
,Tabung Laser Co2 280w
Fitur Kinerja:
Balok: Mengadopsi teknologi eksklusif, memasang perangkat conbimed balok terintegrasi,untuk mengumpulkan energi cahaya paling banyak dan meningkatkan kualitas sinar laser secara efisien.
Tempat laser: Tempat laser yang stabil dan berkualitas tinggi (1+1≈1)
Kekuasaan: mode operasi alternatif: satu set dioperasikan secara terpisah atau dua set dikontrol secara serempak
Kehidupan pelayanan: Teknologi penyegelan Kovar diadopsi, katalis diterapkan, yang membuat masa pakai lebih dari 10.000 jam
Penjaga Keamanan:
Bahan yang berlaku: Baja tahan karat 3mm, baja karbon 4mm, templat pisau 18mm
Industri yang Berlaku: Die processing, printing & packing, dekorasi iklan, furnitur
, Alas kaki, industri pengolahan lembaran logam
Spesifikasi teknis:
| Model nomor. | DLT-300 |
| Daya Keluaran (W) | 50-300 |
| Ukuran Tabung Laser: L * W * H (mm) | 1850*265*144 |
| Tabung Laser NW (kg) | 34.5 |
| Ukuran Catu Daya: L * W * H (mm) | 320*210*80 |
| Diameter Sinar Laser (mm) | 4.8 |
| Stabilitas Keluaran | kurang dari 5% |
| Arus operasi maks (mA) | 40 |
| Tegangan Awal Maks (KV) | 40 |
| Persyaratan Aliran Pendingin (L / mnt) | 7L/menit |
| Suhu Pendinginan (waer deionisasi) | 15-25 Derajat Celcius |
| Lingkungan Penggunaan Peralatan |
15-30 Derajat Celcius, 30-60%
|
Paket untuk tabung laser 280W
-
