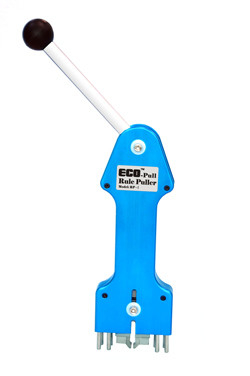

Rule Puller for dieboard making and Cutting formes making
Die Cutter Machines
,Die Cutting Machine
1)Pioneer-Pull is a manual device and the steel rules on the cutting board can be pulled vertically.
2)When using Eco-Pull to replace steel rules, it assures that the gap of the board can be recycled for not being widened
3)Enhances work efficiency, assures operators of safety, and avoids personnel from injury due to inappropriately usage.
Max. capacity : 3pt.
Size : (L)100×(W)30×(H)410mm.
Weight : 1.60kg.
Characteristics:
Solid aluminum-alloy construction, very light and fancy outlook.
Grabbing rules without sliding like pincers.
Pulling rules vertically and stably.
Efficient and easy operation.
Extremely safe and comfortable to operate.
Replace able clamping jaws are made of hardened steel, ensuring longer lifetime.
Field of Application & Work Stations:
·Pioneer-Pull is designed for the sole purpose of pulling the steel rules required to be replaced on the cutting board. This tool is not suitable for other categories.
·Pioneer-Pull is to be operated in a die-room and used directly on the cutting board.
Operation Diagrams
Product Functions Explanation:
1)Pull steel rule vertically, so the board will not be damaged.
2)Eight pins (foot) are movable, so it can be used in different cutting-die.
3)During operation, hands should be kept away from the steel rule, so it can protect the hands from injury.
4)The jaw is economic and durable, and it can be replaced easily.
5)The machine can be operated easily by both left-handed and right-handed users.
6)User-friendly design makes the operation more comfortable and safe. Special Lever Principle design assures both vertical pulling and personnel of safety.
-
