Guillotine Automatic Packaging Machine 115 Programmed touch screen with 6 language LCD Single/Double hydraulic pump
Bag Packaging Machine
,Automatic Packaging Machine

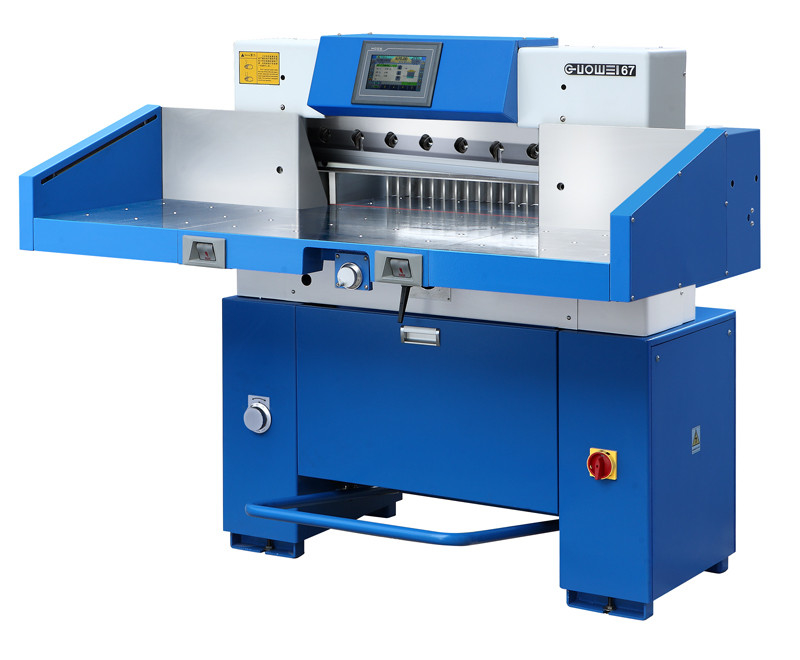

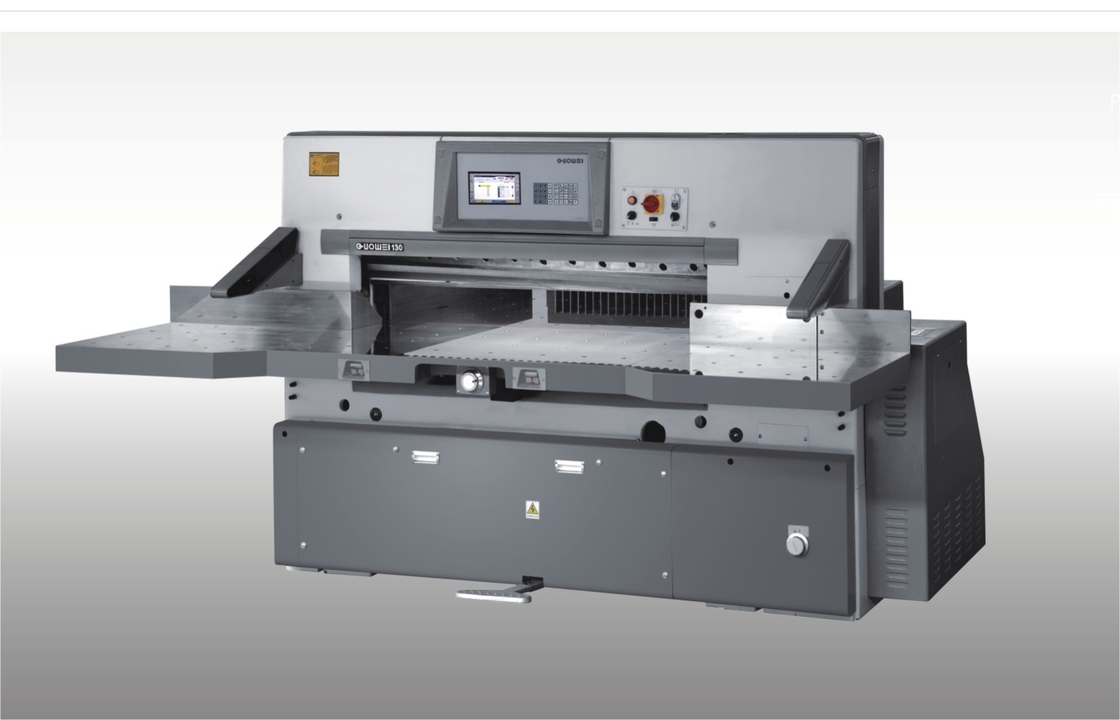

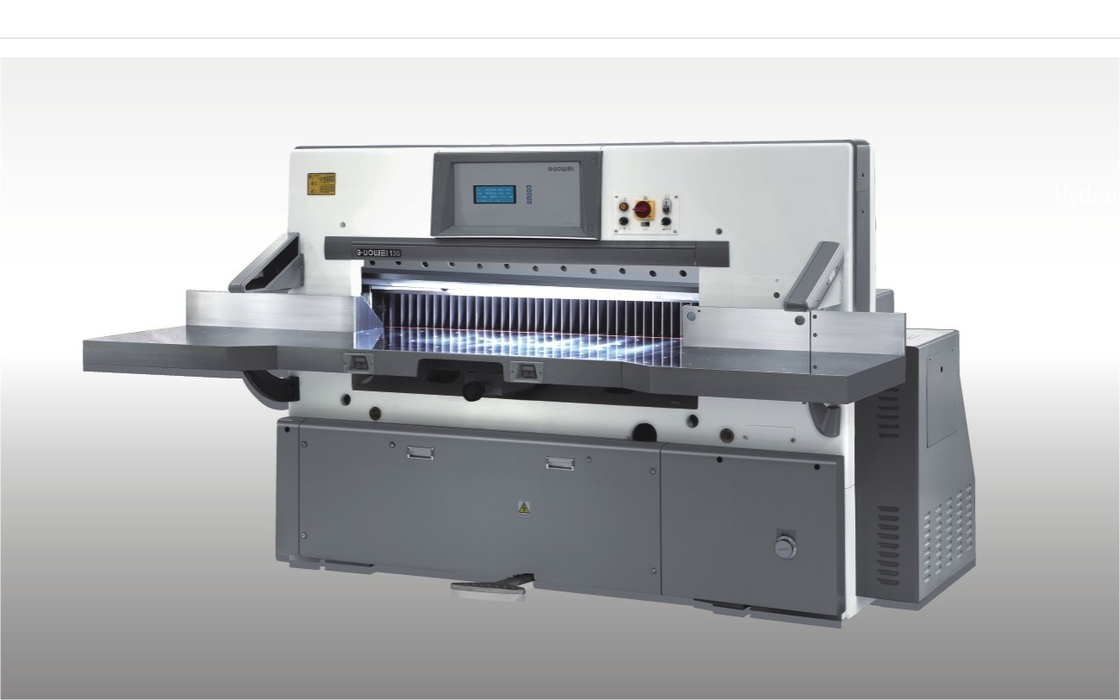

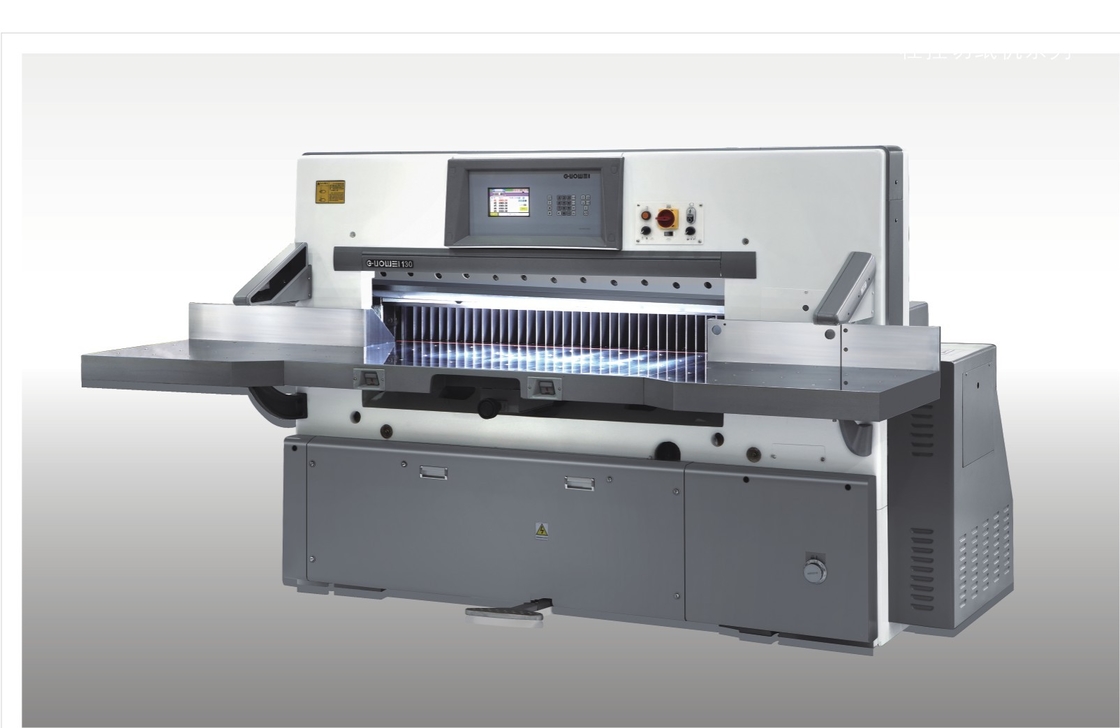

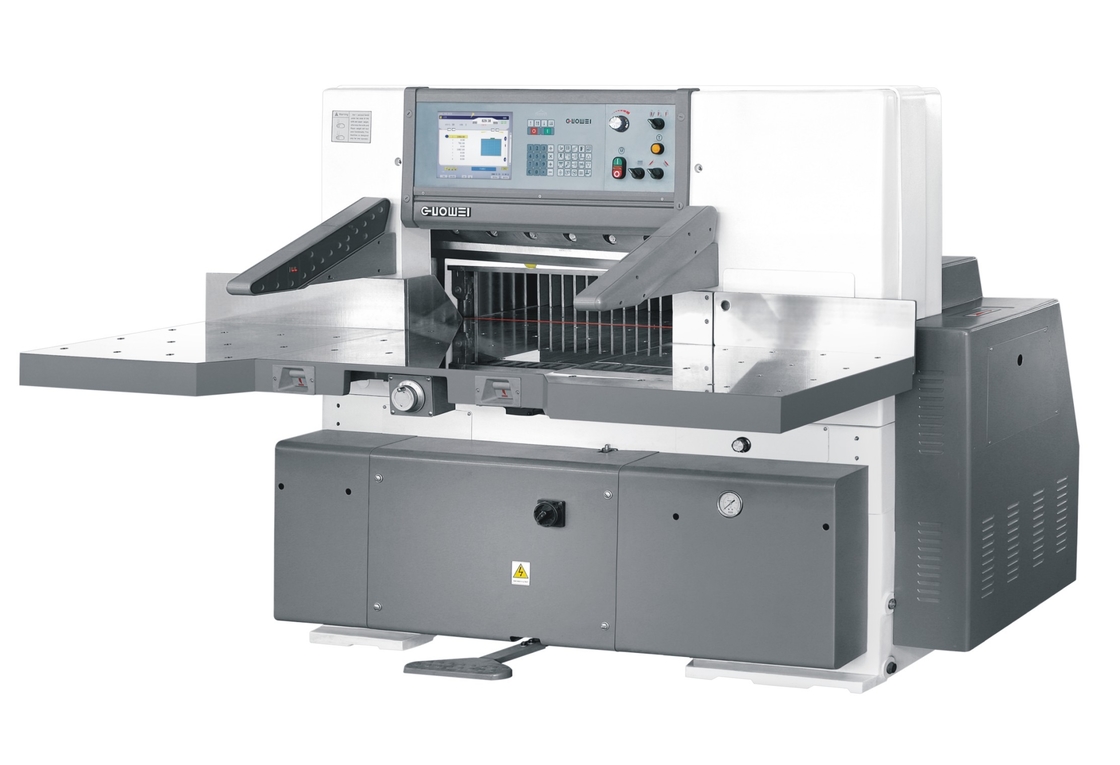

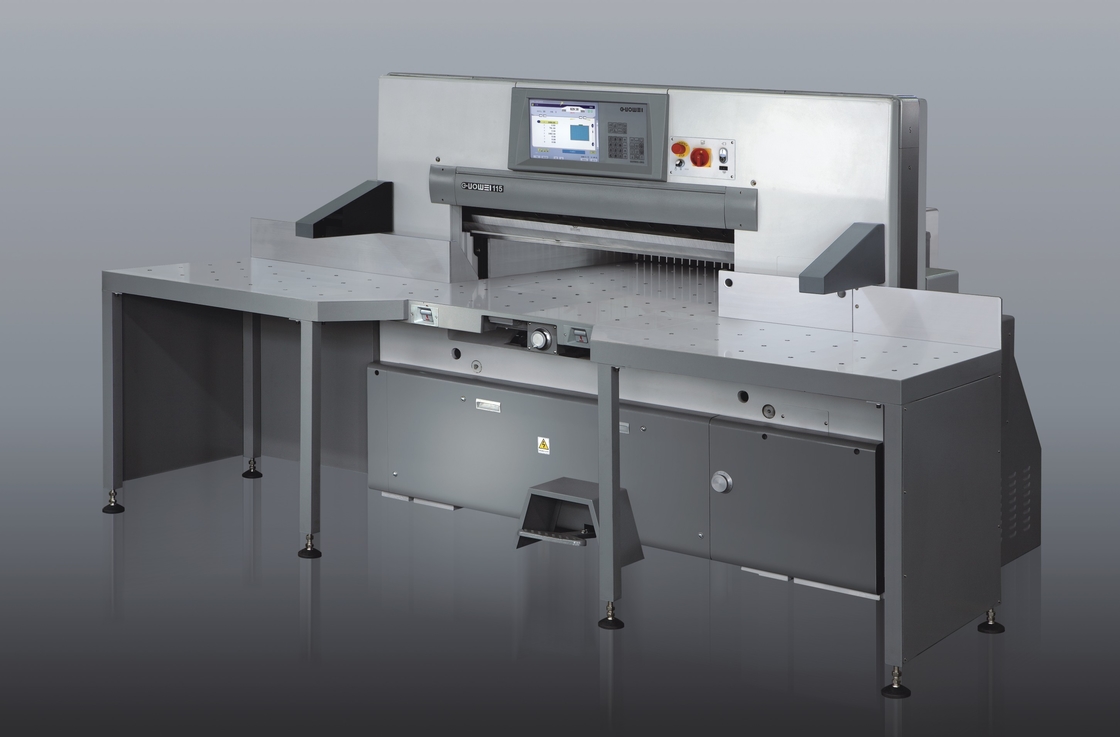

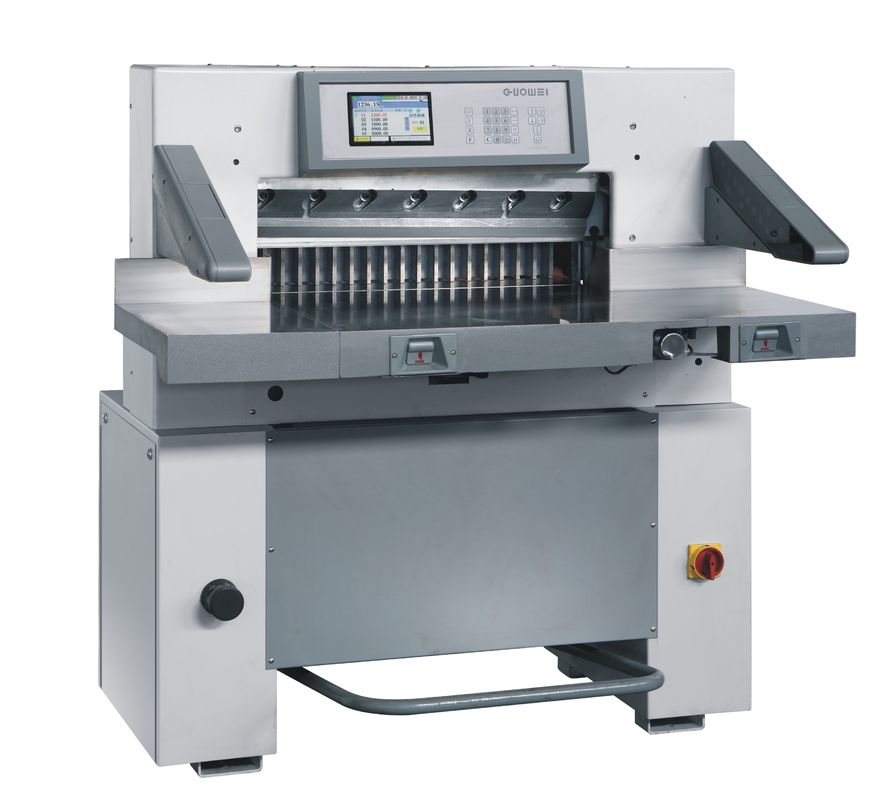

115S Program-controlled paper cutter series
7.0 inches color screen, the data resolution 0.05MM, fault self-diagnostic function and operation of model showed that 60 program group, more than 6000 different locations of the crop, can be dynamic tracking, the maximum speed of 5-10 meters push paper / min, selected imports of hydraulic components, Japan, Korea Electric components, the use of imported low-maintenance bearings.
main features:
A. Linear guide-rail makes paper impeller run smooth,low noise,accurate positioning,enhance the cutting precision and speed greatly,prolong the service lift of paper cutter.
B. The working tables are all chrome-plated and equipped with air balls which makes paper-pushing easily and rusty-proof.Large side workingtable(1000*800) is optional.
C. IR photoelectric protection,buttons by two hands safety devices.
D. Safety device for knife bed, overloading protection for cutting,automatic return safety device.
E. Imported hydraulic components are adopted in hydraulic system,the pressure can be adjusted.The paper is pressed twice by pressure-increased system.
F. Mechanical assistance device for knife replacement makes knife replaced quickly and safely.
G. Equipped with the optical knife alignment to make cutting more convenient.
I. Ejecting device for knife bar.
J. Flat worm speed reducer transmission.
M. Carry on the block programming operation through the figures and diagrams operation manual.
-
Tinggi - End Versi 400w 600w 800w Mesin Laser Cutting Untuk Die pembuat Dewan
MPS-DS1212 SERIES OF HIGH-END VERSION LASER CUTTING MACHINE FOR DIE BOARD MAKER MPS-DS, the high-end version of medium power laser cutting machine, adopts the principle of constant light path design.it keeps laser in the process of device running, materials are fixed on the platform with the moving platform, thus, it can ensure the stability of the optical path. The advantage of this laser cutting machine: 1. The laser cutting machine equipped with the laser generators
-
Mesin Pemotong Laser 1000W / 1500W / 2200W Fast Flow Generator Untuk Pembuatan Papan Die
1500W 3 Phase Metal Laser Cutting Machine for die cutting Factory Specifications: Model PMH-1812 Laser generator power 1500W max. Laser beam wave 10.6 m Power adjustment 50-1500W X axis travel 1250mm Y-axis travel 1850mm Positioning accuracy +/- 0.05mm/m Maximum positioning speed 10m/minute max. Control system motion control card / NC Transmission system screw guide Driving system Three-axis servo drive system Optical system X axis Laser moves Y axis table moves Moving system
-
Auto Bender Sepenuhnya Otomatis Dengan Bending Cutting Notching Dan Lipping Model 910C Untuk Aturan Baja 1.5/2/3pt
Completely Computer Control Diecutting rule Auto Bending Machine for Dieboard making Main technical specifications 90 ° minimum R no repair knife 1.5 mm (support blade thickness 0.71) 2.0mm (support blade thickness 1.07) 180 ° minimum R no repair knife 2.5mm (support blade thickness 0.71) 3mm (support blade thickness 1.07) Maximum bending $ 1000 mm Maximum bending angle 120 ° Minimum 90 ° bend size 3 mm Minimum bending full circle diameter 5mm Feeding accuracy ± 0.05mm Tail
-
Digital Printing / Percetakan grafis Express Unit mesin pemotong kertas hidrolik
Hydraulic paper cutting machine Guillotine for Digital Printing for Graphic Express Printing Unit Product Description: Cutting knife and paperweight are controlled by hydraulic transmission. Fully hydraulic drive makes the machine more secure and imported hydraulic parts ensure the stability of the system. The machine has the function of a reference setting and keeping, and the effectiveness of the reference and self-diagnostic function; infrared protection and hands button
