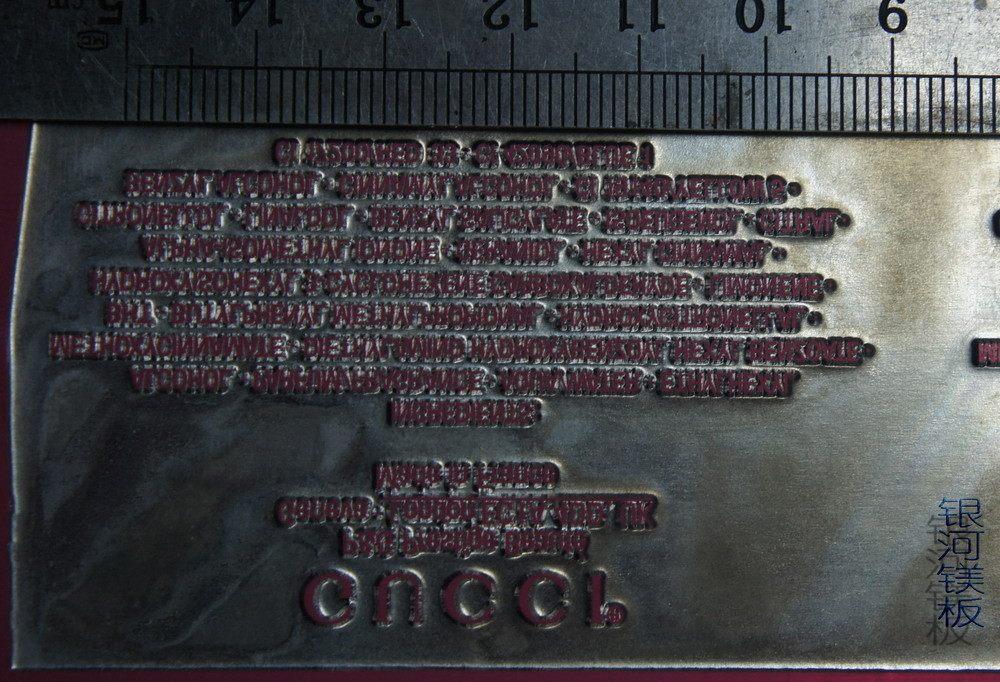

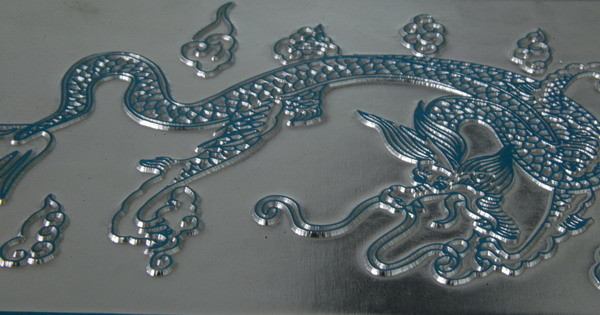

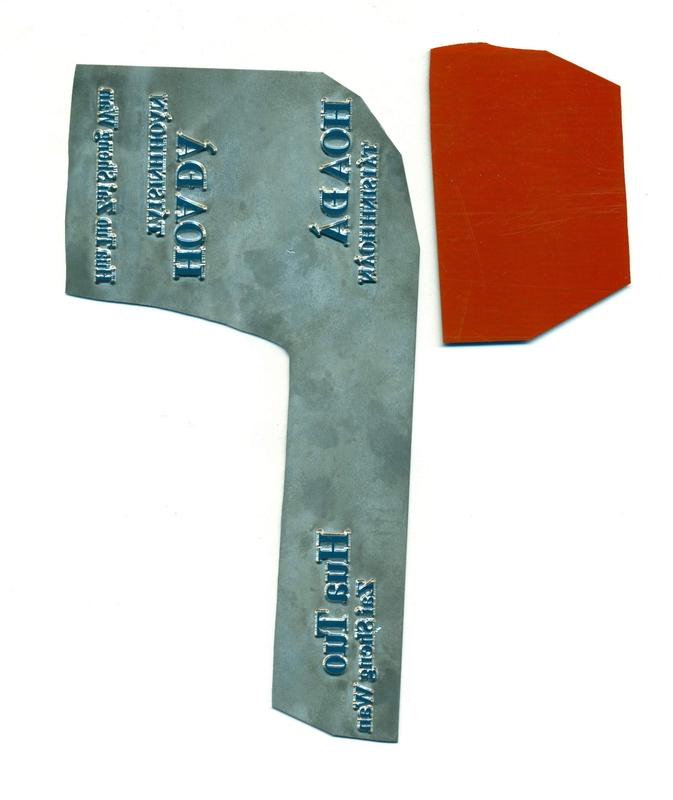

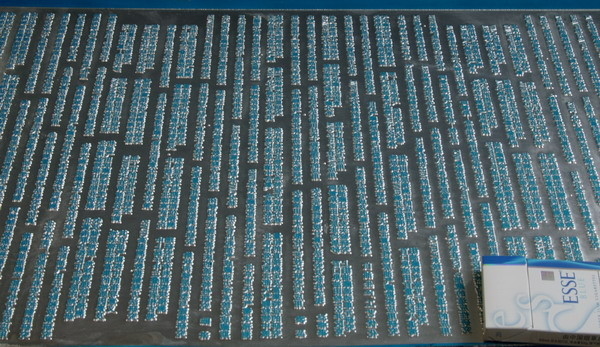

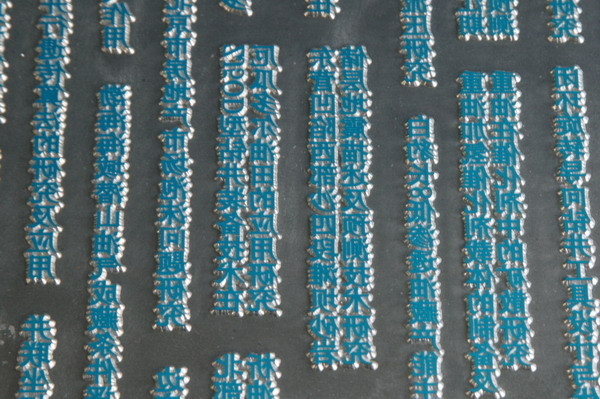

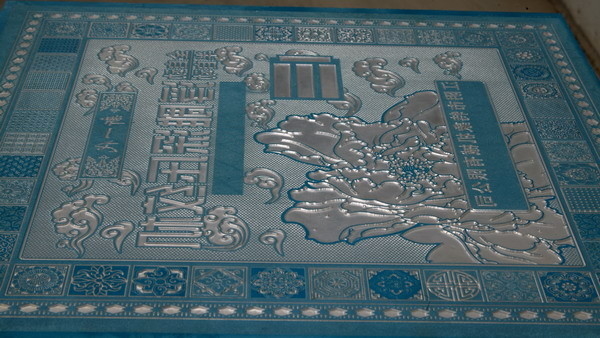

Photoengraving zinc plate for etch die / Hot stamping die 1.5x1000x500mm

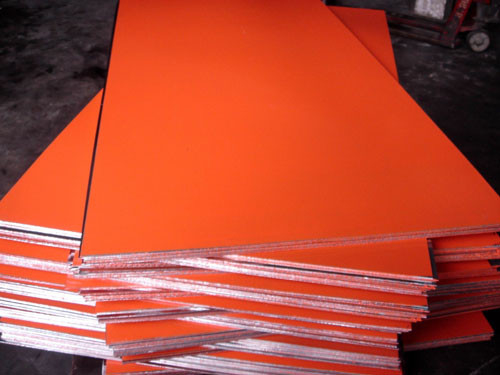

Coated Pure Zinc Plate
For etching plate, Hot stamping die
Photo engraving plate
Pure zinc plate, stable and even
Good coat
Coated Pure Zinc Plate
For etching plate, Hot stamping die, Hot stamping Matrix
Pure zinc plate, stable and even
Good coating
Size: 1000x500mm
Thickness: 0.5mm, 1.0mm, 1.5mm, 2.0mm, 2.5mm or 3.0mm, etc.
Common chemical coating
Keywords: Engraving Zinc Plate, Zinc Block, Etching Die
With sensitive coating
Size: 1000x500mm
Thickness: From 1.0mm to 8.0mm
Chemical Composition:
Main Composition(%) |
Impurity≤(%) |
|||||
A1 |
Mg |
Zn |
Pb |
Cd |
Fe |
Cu |
0.02 / 0.10 |
0.05 / 0.15 |
Margin |
0.005 |
0.005 |
0.006 |
0.001 |
Dimension (mm):
Thickness |
Tolerance |
Width |
Tolerance |
Length |
Tolerance |
0.8 |
±0.03 |
381-510 |
±3 |
550-1000 |
±5 |
1.0 |
±0.04 |
||||
1.2 |
±0.04 |
||||
1.4 |
±0.05 |
||||
1.5 |
±0.05 |
||||
1.6 |
±0.05 |
||||
2.0 |
±0.06 |
||||
2.5 |
±0.06 |
||||
3.0 |
±0.06 |
||||
3.5 |
±0.06 |
||||
4.0 |
±0.06 |
||||
5.0 |
±0.06 |
||||
6.0 |
±0.06 |
||||
7.0 |
±0.06 |
